Freight Elevator
BST Freight Elevator
Safe, Reliable And Smooth Operation
Why Choose a Freight Elevator Manufacturer in China
A freight elevator manufacturer in China builds for pallets, trolleys and heavy loads. BST Express freight lifts range from 500 kg to 5,000 kg with wide automatic or manual doors, reinforced cabins and controls rated for continuous goods traffic.
Buying from a freight elevator manufacturer in China with in-house production means your load width, door opening and pit configuration are confirmed against the real shaft – no generic quotes, no surprises on site.
See how BST Express builds it – video factory tour | full buying guide | get a factory-direct quotation
Heavy Loads, Handled With Total Confidence
BST Express freight elevators are built to move the goods that keep business running – pallets, trolleys, machinery and materials. Wide openings speed up loading, light curtain protection keeps every entry safe, intelligent control optimises every trip, and a VVVF machine delivers smooth, dependable power floor after floor.
Door Opening Methods
BST freight elevators offer a range of door opening types for every loading pattern – advanced door systems create a wide, unobstructed entrance, giving you large space and big payload capacity for easy access with pallets, trolleys and machinery.
Double Folding Door
Triple Folding Door
Center Double Folding Door
Single Opening Door
Double Opening DoorDecoration
BST-CD-001F
BST-CD-002F
BST-LD-001F
BST-LD-002F
BST-LD-003F
BST-LD-004F
BST-HI-001
BST-HI-002
BST-HI-003
BST-HI-004
BST-HI-005

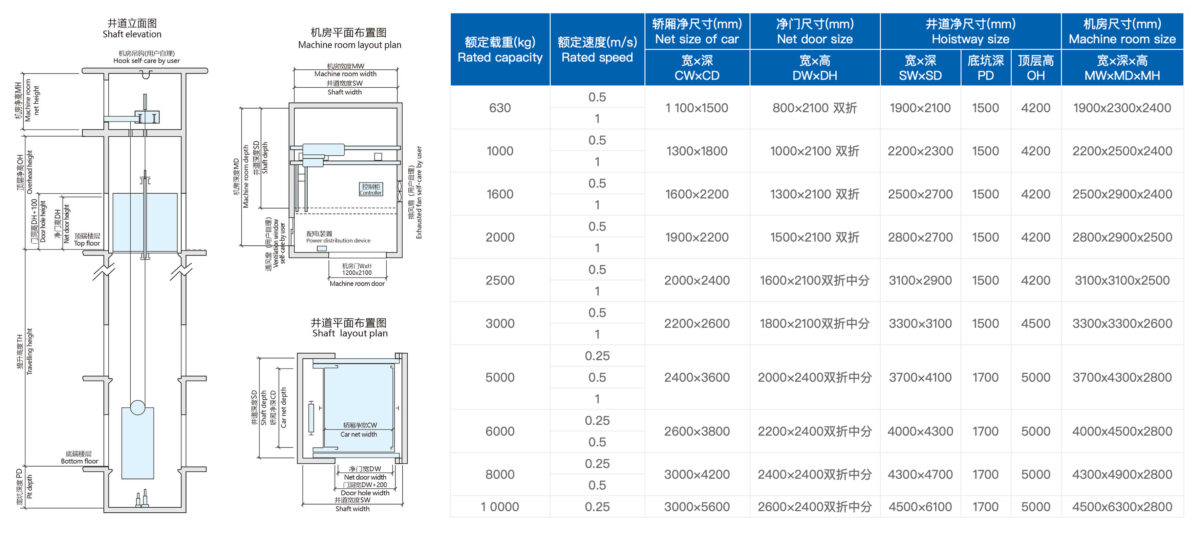

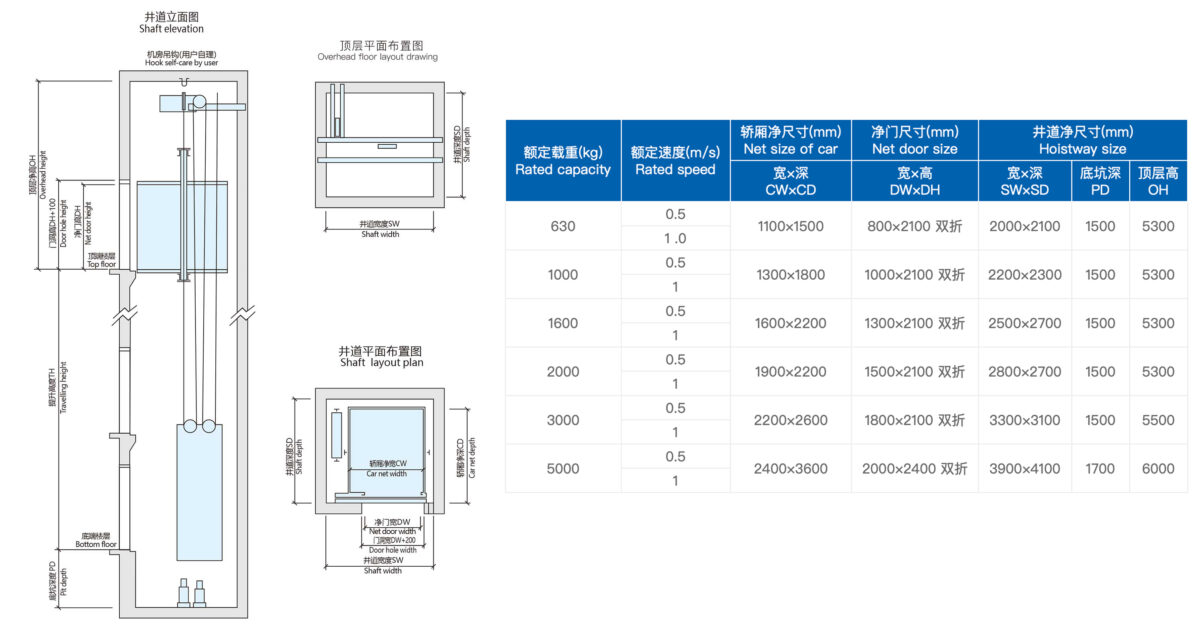

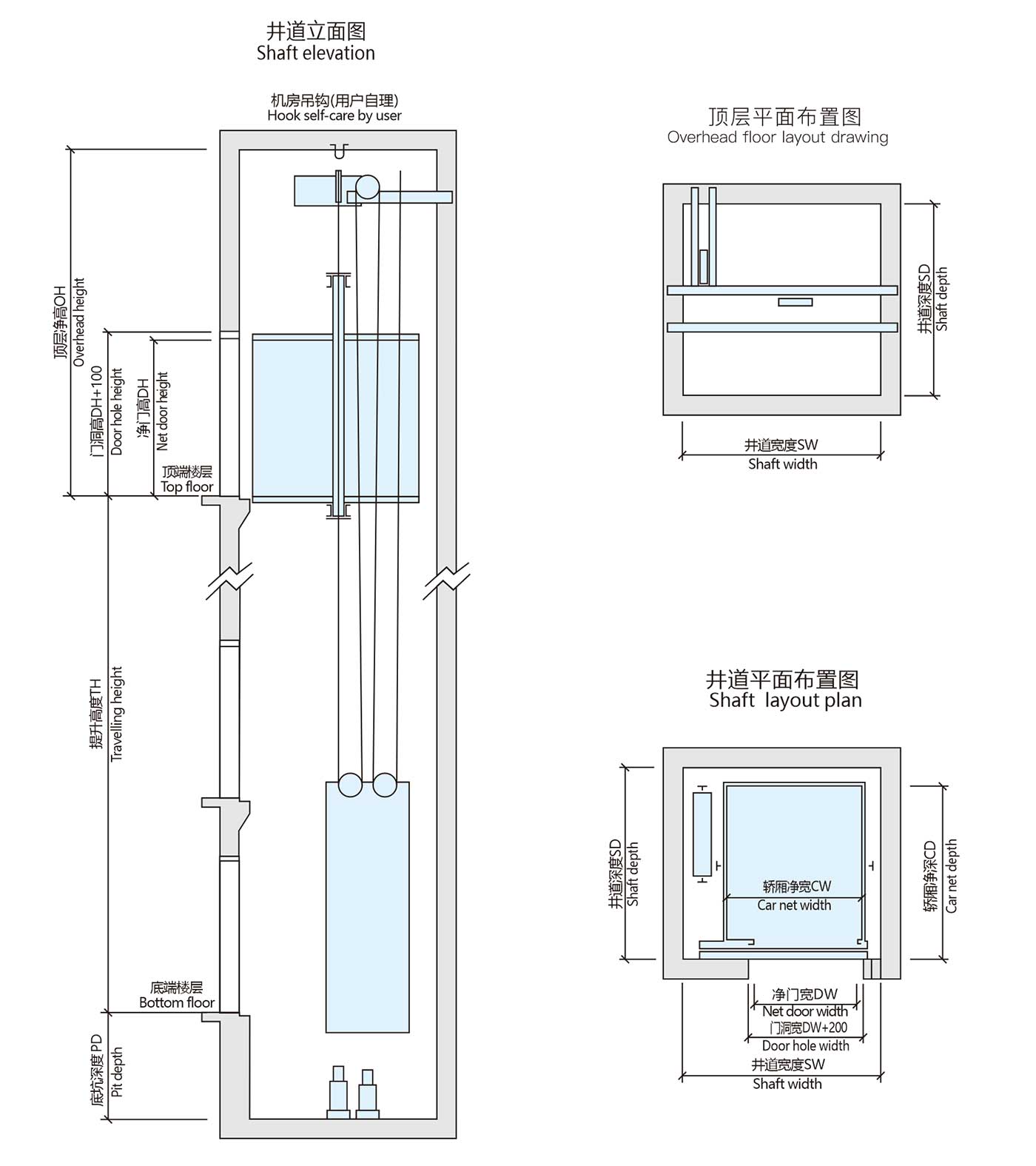

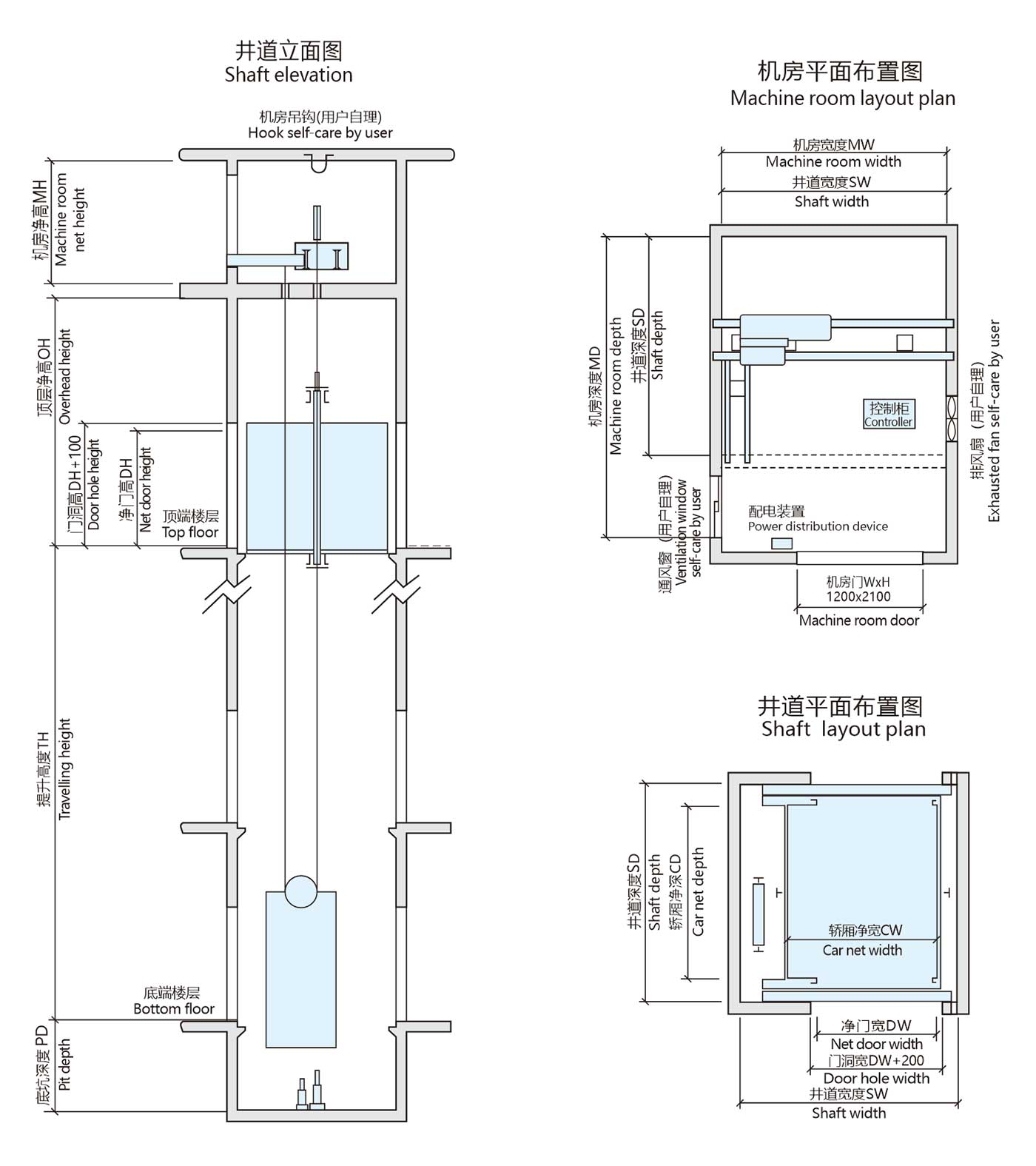

BST-HI-006Construction Sketch
Choosing a Freight Elevator Manufacturer in China: Buyer Checklist
A freight elevator manufacturer in China builds for pallets, trolleys and heavy repeated loads, so the starting point is the load itself: what is the heaviest item, how is it moved and who operates the lift. Capacity, platform size and door type follow from those answers, not from a catalogue.
Because goods lifts work hard, a freight elevator manufacturer in China should specify a reinforced car floor, wear-resistant door tracks and controls rated for continuous traffic. Access matters too – a wide clear opening lets a pallet truck enter without manoeuvring, which saves time on every trip and reduces damage to the door frame.
Delivery, Installation and After-Sales for Freight Lifts
Freight elevators are bulky, so packing and shipping are planned around the door opening and the loading bay. Car panels, platform, door tracks and controller travel as separate crates, each numbered against the packing list, and the installation sequence is issued with the drawings.
Installation is usually handled by local contractors, with remote guidance from the factory during wiring and commissioning. Because goods lifts work hard, we recommend ordering a set of wearing parts – door rollers, shoes and safety switches – with the first shipment, so routine service does not wait on overseas delivery.
Before handover, confirm the rated load with a test load and record the overload device setting. A freight elevator manufacturer in China should supply the test report for the unit together with the maintenance manual, and both documents belong in the building file for future inspections.
If the lift will be used by staff rather than trained operators, ask for a short training session on loading limits, door operation and the emergency procedures.
Frequently Asked Questions
What load capacity is available?
Standard freight lifts run from 500 kg up to 5,000 kg, with larger capacities quoted on request for industrial projects.
Should I choose manual or automatic doors?
Automatic doors speed up loading in busy warehouses, while manual or collapsible gates suit lighter traffic and tighter budgets.
Can the lift carry a pallet truck or forklift?
Yes. Platform and threshold are reinforced for wheeled equipment, and a wide clear opening lets the truck enter straight on.
How are pit and headroom decided?
Both are confirmed against your shaft drawing – send the dimensions to the freight elevator manufacturer in China you select and the layout is verified before production.
What is the usual lead time?
Standard models ship 25-35 days after drawing confirmation, with sea freight added for delivery.
Reference standards and industry benchmarks: ASME A17.1 Safety Code for Elevators and Escalators (US), EN 81-20 / EN 81-50 (EU) and the ISO 8100 series for lifts.
